Quartz pendulum module is the key component of quartz flexible accelerometer to measure acceleration by sensing inertial force. It is made of an integral quartz pendulum piece, with a force generator coil glued on both sides of the center of the swing piece and a flexible head as the swing axis, forming a moving part of the force generator. Its lead is led out by the gold plated lead of the quartz pendulum piece through the quartz flexible head. The coil of force generator is composed of aluminum alloy skeleton and enamelled wire wound in the skeleton.
すべての製品

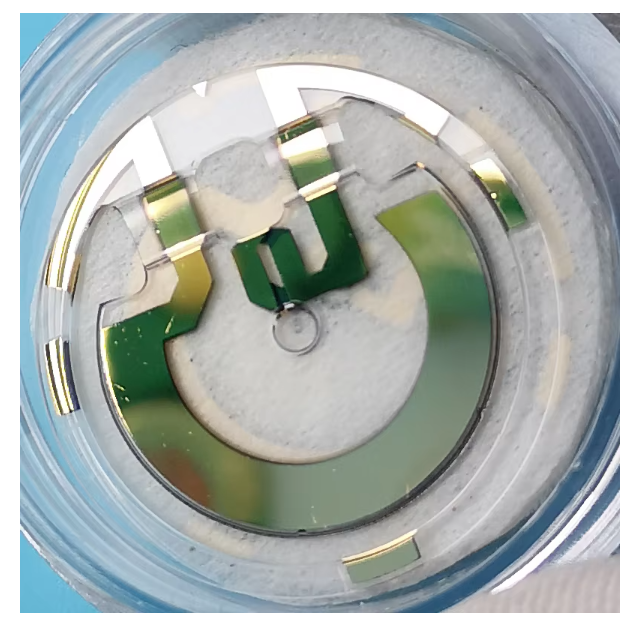

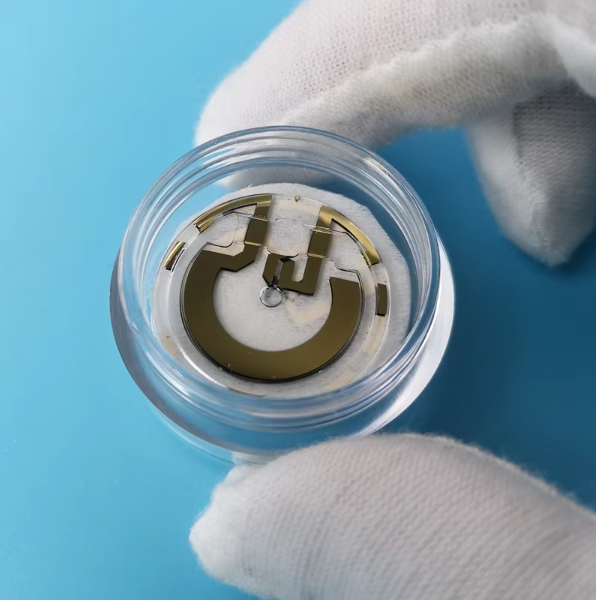

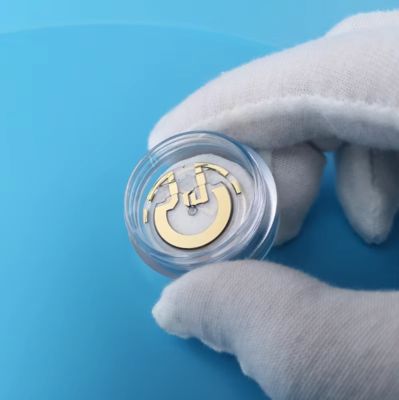

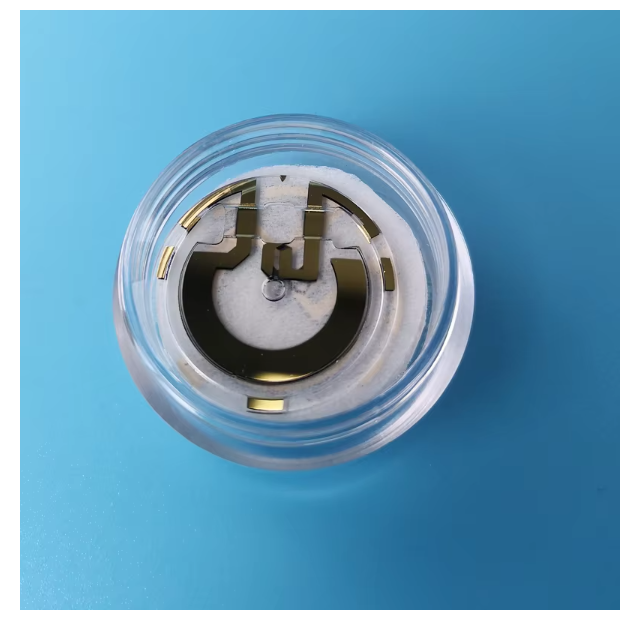

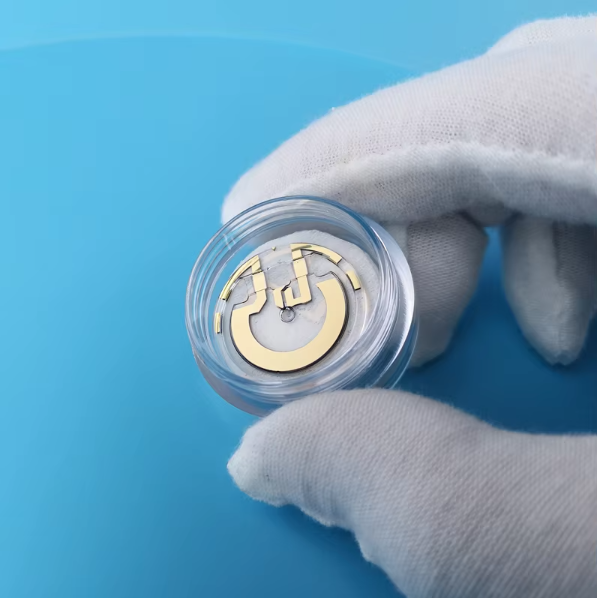

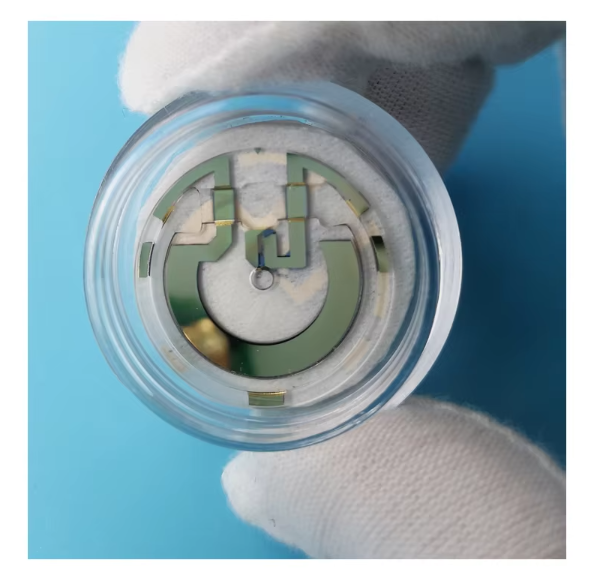

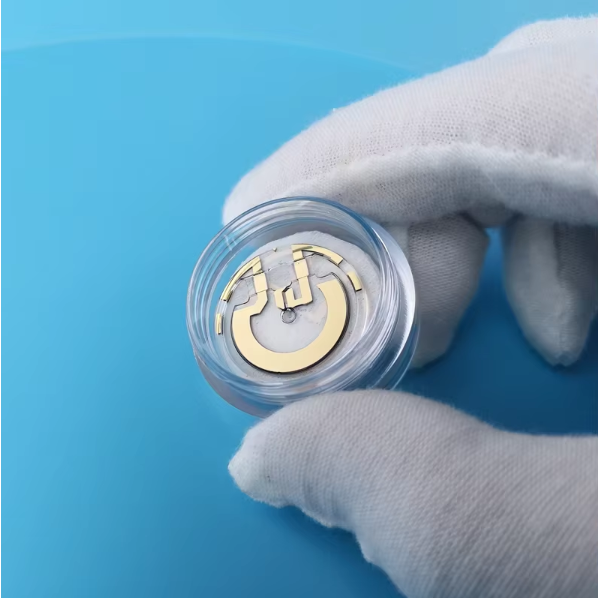

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
| 起源の場所 | 中国上海 |
|---|---|
| ブランド名 | ZKTD |
| 証明 | ISO 9001:2008, Rohs |
| モデル番号 | ZKTD-PO12 |
| 最小注文数量 | 5 PC |
| 価格 | USD 48/Pieces |
| パッケージの詳細 | カートン、木製の箱、パールコットン。 |
| 受渡し時間 | 14 勤務日 |
| 支払条件 | L/C、T/T |
| 供給の能力 | 10000個/月 |
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| ハイライト | flexible beam quartz pendulum,gold coated quartz pendulum,high reflection quartz glass |
||
|---|---|---|---|
あなたはあなたが必要とする製品にチェックを入れて、メッセージボードで私たちと通信することができます。
製品の説明
Product Description
Specification
| Item | Value |
| Brand Name | ZKTD |
| Application | Sensor, Inertial Navigation, instrument |
| Shape | Round |
| Chemical Composition | 99.999% fused silica |
| Product Name | Flexible Beam Quartz Pendulum |
| Color | Clear Transparent |
| Parallelism | <2um |
| Flatness | <0.6um |
| Surface Roughness Ra | <1nm |
| Thickness Error Of Flexible Beam | <1um |
Flexible Beam Quartz Pendulum For Inertial Navigation
